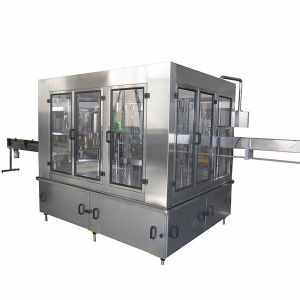

3 in 1 Automatic Bottle Washing Filling and Capping Machine
Description:
This unit is a combined multi-functional unit that integrates
washing, filling and capping. It is one of the most ideal small and
medium-sized beverage machinery equipment in China.
The whole machine adopts advanced man-machine interface operation,
PLC control, variable frequency stepless speed regulation and other
automatic control technology. It has automatic shutdown at low
temperature, automatic control of feeding and returning, with no
bottle and no cover, bottle waiting, bottle bottle stop, The cover
is automatically closed when the cover is not closed.
Main Features:
1. Washing,filling,capping can be carried out on the same machine.
The design of the machine is scientific and reasonable.
2. The water filling machine appearance is beautiful and the
function is complete. The operation and maintenance is convenient.
3. The water filling machine adopts advanced technology and normal
pressure filling valves, with high filling precision. The speed of
filling is fast and the liquid amount is controlled accurately,
with same filling level.
4. The water filling machine filling device can be stopped
automatically when there is no bottle or bottles are damaged.
5. Pneumatic value and damped gears are used for bottle conveying,
the noise is low and the whole machine runs smoothly.
6. The magnetic torque is used for screw capping.The power of screw
capping can be adjusted without steps. The power of the screw
capping can also be fixed. The caps can not be damaged, the capping
is reliable.
Main Technical Data:
| Capacity | 2500BPH (500ml) |
| Bottle Height | 150～310mm |
| Bottle Diameter | ф50～ф96mm |
| Bottle Type | PET bottle |
| Cap | HDPE Cap |
| Washing Head | 8 |
| Washing Capacity | 1000kgs/hour |
| Washing Pressure | 0.2-0.4Mpa |
| Filling Heads | 8 |
| Capping Heads | 3 |
| Rated Voltage | 220V/380V,50/60HZ, 3 phase |
| Main Motor Power | 1.5kw |
| Total Motor Power | 3kw |
| Overall dimension | 2000*1800*2100mm |
| Weight | 1800Kg |
